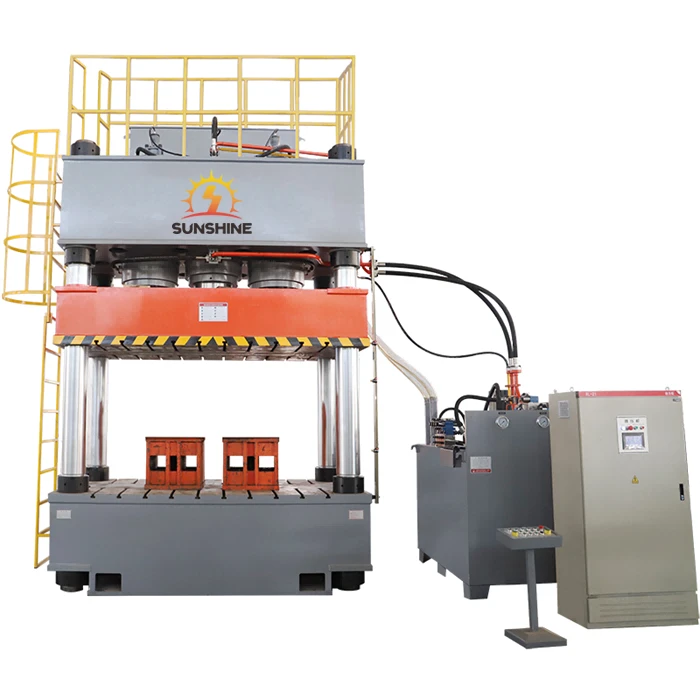

1000T Four-Column Hydraulic Press Machine
1000 Ton Hydraulic Press Machine for Heavy Duty Metal Forming
This 1,000-ton hydraulic press is a high-performance industrial forming machine designed for heavy-duty operations such as pressing, stamping, deep drawing, bending, forging, and molding.
With a maximum pressing force of 1,000 tons, the machine delivers powerful output, stable operational performance, and precise control capabilities for large-scale manufacturing, achieving a slide parallelism of 0.05 mm.
Equipment Parameter Information
| Technical Parameters | YM-1000T | |
| Nominal pressure(KN) | 10000 | |
| System pressure(Mpa) | 25 | |
| Slider stroke(mm) | 800 | |
| Maximum opening height(mm) | 1500 | |
| Effective size of workbench | The left and right sides | 1500 |
| The front and rear sides | 1300 | |
| Slider speed(mm/s) | ldle stroke | 120 |
| Feeding | 12 | |
| Back tracking | 130 | |
| Ejection force(KN) | 1000 | |
| under cylinder stroke(mm) | 320 | |
| Motor power(KW) | 30×2 | |
★The above specifications apply only to standard models; the table size, daylight opening, and pressing speed can all be customized.
Typical Applications
Automotive Industry
Auto parts forming, brackets, covers
Metal Industry
Sheet metal forming, stamping parts
Powder Metallurgy
Iron powder, ceramic powder compacting
Composite Materials
Carbon fiber, FRP molding
Rubber Industry
Rubber compression molding
Construction Materials
Tile pressing, special components
Electrical Industry
Insulation parts forming
Wind power industry
Insulating materials, metal forming
Configuration
Pairing ratio
Ejector cylinder
Function:
The lower cylinder is mainly used for ejecting finished parts from the die after the stamping process. It helps remove workpieces
smoothly, prevents parts from sticking in the mold, and improves production efficiency.
Features:
√ Smooth workpiece ejection
√ Adjustable stroke and force √ Prevents mold sticking √ Improve production efficiency
Suitable for Various Applications
Widely used in metal stamping, punching, forming and die processing operations
Hydraulic cushion
Function:
The hydraulic cushion provides adjustable blank holder force during deep drawing and sheet metal forming processes. It controlsmaterial flow, prevents wrinkles and cracks, and improves the forming quality of products.
Features:
√ Adjustable blank holder force
√ Prevents wrinkles and cracks
√ Improves deep drawing quality
√ Ensures stable sheet metal forming
Ideal for Sheet Metal Applications
Suitable for stainless steel sinks, aluminum parts, automotive components and other deep drawing products.
Contact us today to get the best hydraulic press price and professional technical solutions!
