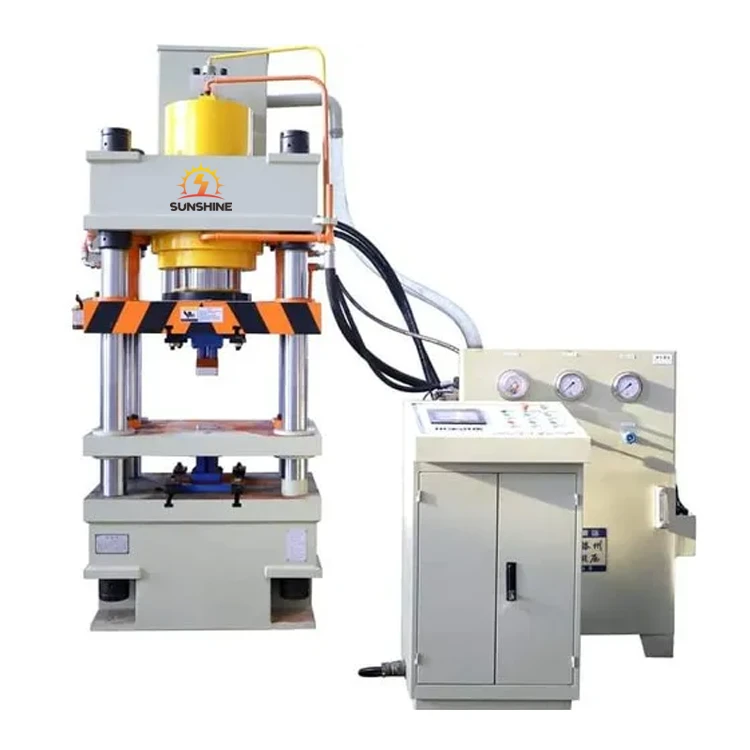

Custom Hydraulic press machine
Hydraulic Press Machine Manufacturer | 100T–2000T Servo & PLC Press
Built with precision machining, heavy-duty welded steel frames, and premium components, our hydraulic presses provide high accuracy, stable performance, energy efficiency, and long service life for continuous industrial production.
Custom Hydraulic Press
Built for Your Production Needs
Our Hydraulic press machines
Wide Product Range, Custom Hydraulic Press Solutions, and Fast Factory Quotations Within 24 Hours.
Custom Hydraulic Press Features
Built for Your Production Needs
Customized Solutions for Hydraulic Presses
Designed according to your workpiece size, pressing force, stroke, daylight, and production requirements.
Scope of Custom Applications
Available from 10 Ton to 5000 Ton to meet different industrial applications.
Flexible Automation
Optional PLC control, servo system, robotic loading, automatic feeding, and production line integration.
Heavy-Duty Construction
Welded steel frame with high-strength components for long service life.
Energy Saving
Servo hydraulic system can reduce energy consumption by up to 30–50%.
Multi-Function Design
Suitable for stamping, deep drawing, punching, forming, straightening, embossing, powder compaction, and assembly.
Products parameter
| Technical Parameters | Y32-100T | Y32-150 | Y32-200T | Y32-250T | Y32-315T | Y32-500T | Y32-630T | Y32-800T | Y32-1000T | |
| Nominal pressure(KN) | 1000 | 1500 | 2000 | 2500 | 3150 | 5000 | 6300 | 8000 | 10000 | |
| System pressure(Mpa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Slider stroke(mm) | 260 | 260 | 500 | 500 | 500 | 700 | 800 | 700 | 800 | |
| Maximum opening height(mm) | 440 | 350 | 800 | 720 | 800 | 1000 | 1300 | 1200 | 1500 | |
| Effective size of workbench | The left and right sides | 640 | 640 | 720 | 720 | 800 | 1400 | 1400 | 1200 | 1500 |
| The front and rear sides | 550 | 550 | 700 | 700 | 700 | 1400 | 1400 | 1500 | 1300 | |
| Slider speed(mm/s) | ldle stroke | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Feeding | 14 | 14 | 14 | 14 | 14 | 15 | 12 | 12-16 | 12 | |
| Back tracking | 72 | 72 | 72 | 65 | 69 | 130 | 130 | 130 | 130 | |
| Ejection force(KN) | - | - | - | - | - | 630 | 1000 | 1000 | 1000 | |
| under cylinder stroke(mm) | - | - | - | - | - | 260 | 320 | 320 | 320 | |
| Motor power(KW) | 5.5 | 5.5 | 11 | 11 | 15 | 22×2 | 22×2 | 22×2 | 30×2 | |
Service
Professional Technical Support
✅ 24-Month Warranty
✅ Free Spare Parts
✅ 24-Hour Quote
✅ OEM & ODM Support cooperation
✅ Worldwide Delivery
✅ Lifetime Technical Support
Our Certificate
UDEM Certificate
CE Certificate
ISO 9001:2015
Our hydraulic presses are manufactured in compliance with CE safety standards, ensuring reliable quality, enhanced operator safety, and compliance with European market requirements.
CE certification helps customers reduce procurement risks, simplify customs clearance, and confidently use our machines in international markets.
Contact Us Today to Get Factory Price Within 24 Hours
Hot Tags: custom hydraulic press machine, China custom hydraulic press machine manufacturers, suppliers, factory
