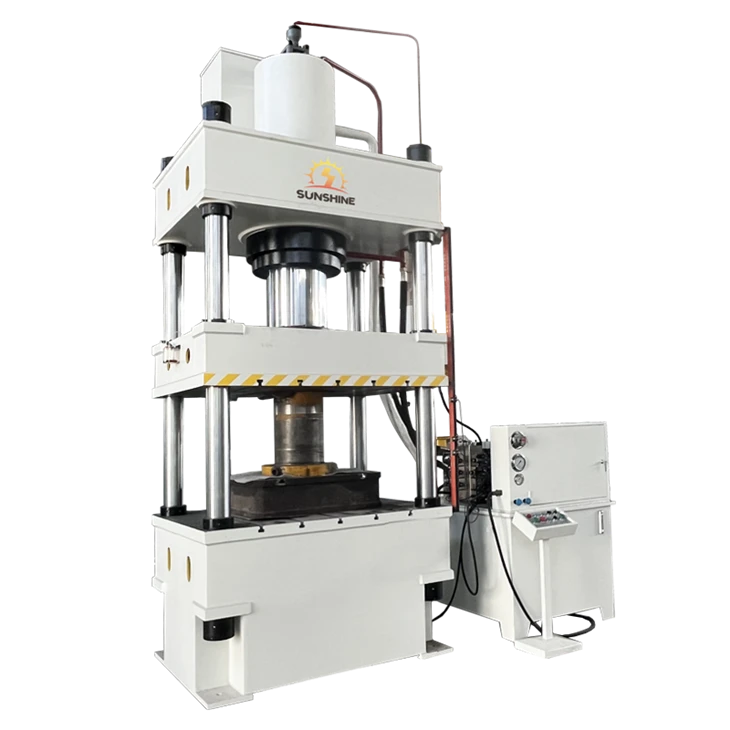

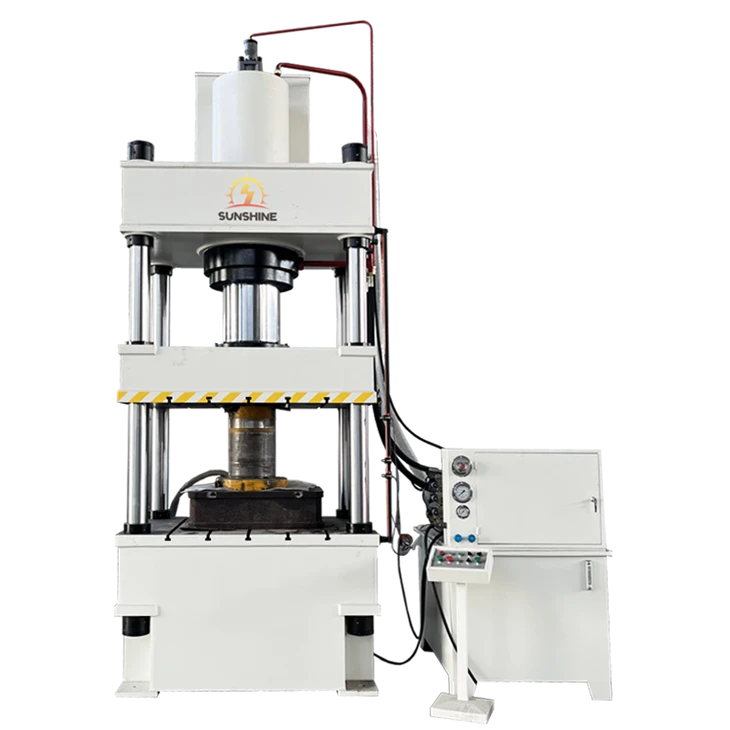

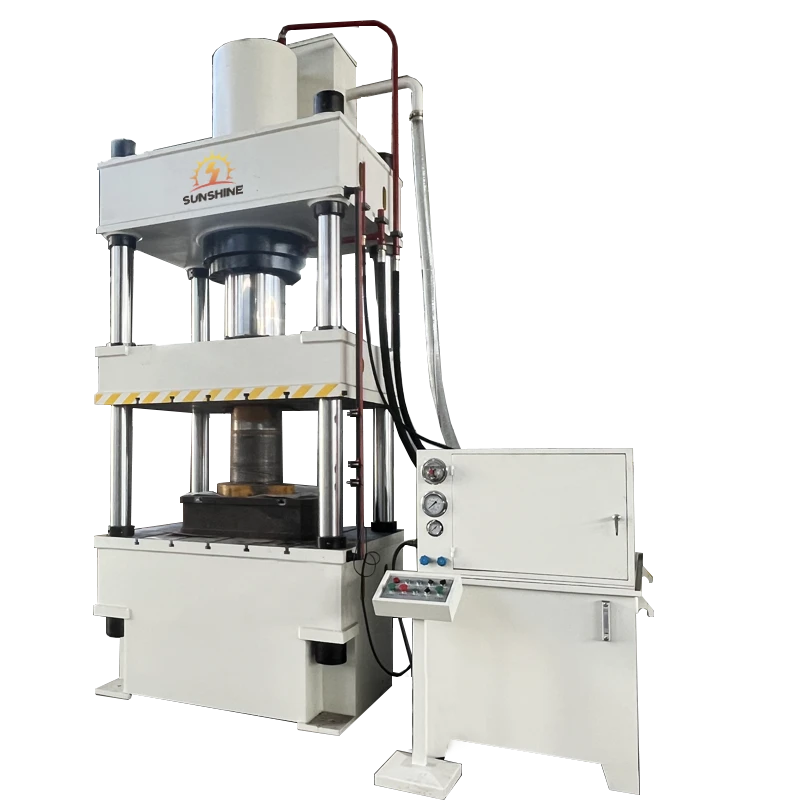

Metal Stamping Hydraulic Press Machine

Metal Stamping Hydraulic Press Machine is a high-performance hydraulic forming solution designed for precision metal stamping, punching, bending, embossing, and forming applications. With a rigid four-column structure, advanced hydraulic control system, and customizable configurations from 50T to 2000T, this hydraulic press machine is widely used in automotive parts, electrical components, household appliances, wind power equipment, and industrial metal fabrication.

The machine can be configured according to product size, material thickness, and production cycle requirements.

Small capacity: 50T-100T for precision stamping and small components

Medium capacity: 200T-500T for automotive and industrial parts

Heavy duty capacity: 630T-2000T for large metal forming applications

Products Description

Technical Parameters		Y32-100T	Y32-150	Y32-200T	Y32-250T	Y32-315T	Y32-400T	Y32-500T	Y32-630T	Y32-800T	Y32-1000T	Y32-1200T
Nominal pressure(KN)		1000	1500	2000	2500	3150	4000	5000	6300	8000	10000	12000
System pressure(Mpa)		25	25	25	25	25	25	25	25	25	25	25
Slider stroke(mm)		260	260	500	500	500	600	700	800	700	800	1100
Maximum opening height(mm)		440	350	800	720	800	800	1000	1300	1200	1500	1700
Effective size of workbench(mm)	The left and right sides	640	640	720	720	800	1000	1400	1400	1200	1500	3500
Effective size of workbench(mm)	The front and rear sides	550	550	700	700	700	1000	1400	1400	1500	1300	2000
Slider speed(mm/s)	ldle stroke	120	120	120	120	120	120	120	120	120	120	150
	Feeding	14	14	14	14	14	14	15	12	12-16	12	17.5
	Back tracking	72	72	72	65	69	70	130	130	130	130	135
Ejection force(KN)		-	-	-	-	-	300	630	1000	1000	1000	3000
under cylinder stroke(mm)		-	-	-	-	-	260	260	320	320	320	450
Motor power(KW)		5.5	5.5	11	11	15	15	22×2	22×2	22×2	30×2	37×2

Our configuration

Overall structure

The Metal Stamping Hydraulic Press Machine adopts an integrated steel plate welded frame structure, which provides excellent rigidity, high strength, and long-term stability during heavy-duty forming operations.

Electrical components

Motor pump unit

The hydraulic press machine is equipped with an aluminum housing motor-pump unit, providing excellent heat dissipation, lightweight design. The aluminum alloy housing helps maintain stable operation of the hydraulic system during continuous industrial production.
